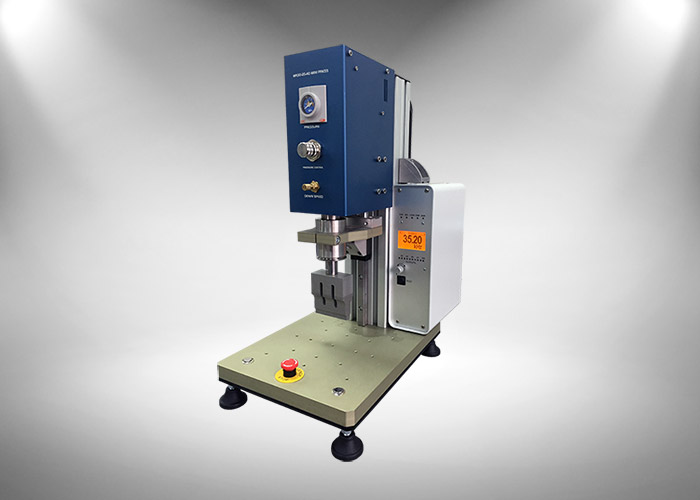

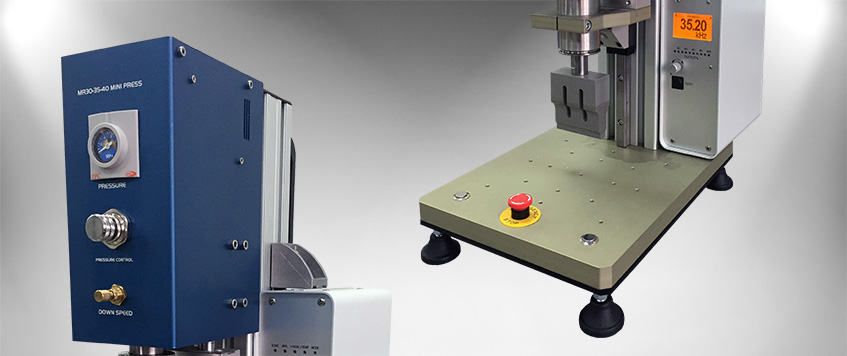

MR30-35-40 ULTRASONIC MINI PRESS
Automotive Industry , Electric Products Packaging and Clothing , Medical Products , Stationery and Toys etc. is suitable for use. MR30-35-40 Mini Press, is unrivaled with frequency range and power output.
| HARDWARE FEATURES | TECHNICAL DATA |
|---|---|
| Time and Energy mode | Operating frequencies 30-35-40 kHz |
| Amplitude control | Output power 800 Watt |
| Automatic frequency tuning | Weight 15 Kg. |
| Weld time | Table dimensions 24 x 34 |
| Hold time | Head cylinder stroke 50 mm. |
| Delay time | Diameter of cylinder Ø10 |
| Afterburst time | Adjustment of head position 150 mm. |
| Touch screen/Rotary encoder | Air feed 6 Bars. |
| Ultrasonic load meter scale | Head speed adjustable with manuel flow control valve |
| Protection: Over load, No load, Short circuit, Overtemperature | Head pressure adjustable with manual pressure regulator |
