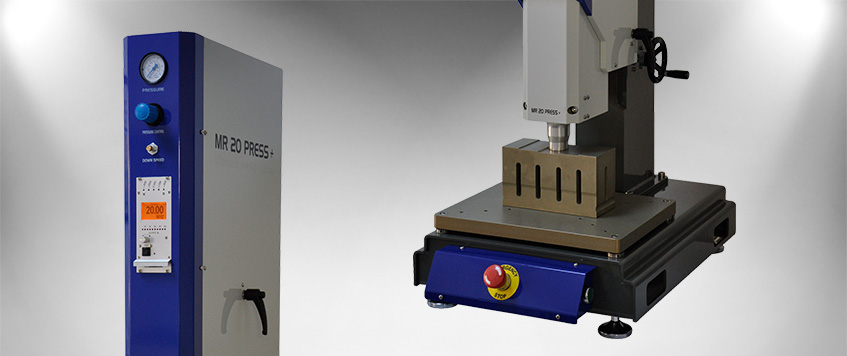

MR20 ULTRASONIC PRESS+
Automotive Industry , Electric Products Packaging and Clothing , Medical Products , Stationery and Toys etc. is suitable for use. MR20 Press+ , is unrivaled with frequency range and power output.
| HARDWARE FEATURES | TECHNICAL DATA |
|---|---|
| Time and Energy mode | Operating frequencies 20 kHz |
| Amplitude control | Output power 500 to 4000 Watts |
| Automatic frequency tuning | Weight 100 Kg. |
| Weld time | Table dimensions 300 x 400 |
| Hold time | Head cylinder stroke 100 mm. |
| Delay time | Diameter of cylinder Ø80 |
| Afterburst time | Adjustment of head position 500 mm. |
| Touch screen/Rotary encoder | Air feed 6 Bars. |
| Ultrasonic load meter scale | Head speed adjustable with manuel flow control valve |
| Protection: Over load, No load, Short circuit, Overtemperature | Head pressure adjustable with manual pressure regulator |
